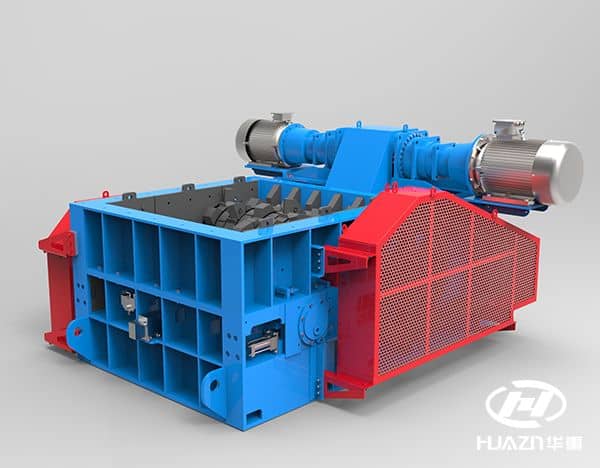

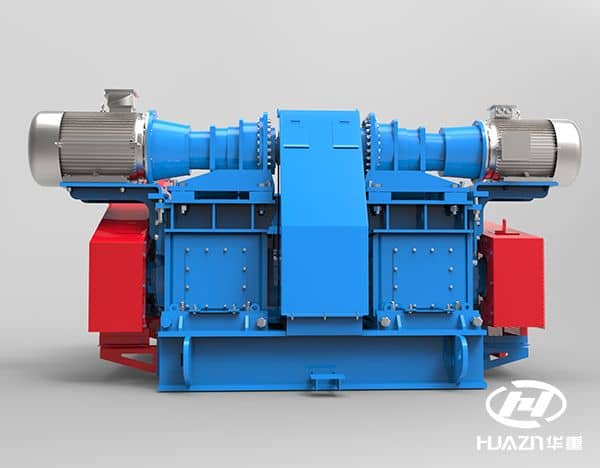

The 2PGC construction waste crusher is a new, high-efficiency, environmentally friendly, and technologically advanced crusher developed by our company by introducing and optimizing foreign technology and combining it with the national situation in China. It is primarily designed for crushing reinforced concrete, concrete secondary products, and brick-mixed structures that contain steel bars or iron wires. Its ability to separate steel bars and iron wires is among the best in similar products, and even longer steel bars or iron wires entangled on the roller shaft can be removed by forward and reverse rotation.
The 2PGC construction waste crusher is widely used in the construction waste crushing industry for coarse and medium crushing of concrete, concrete secondary products, and brick-mixed structures.
Discharge particle size: 50~150mm
Production capacity: 50~250t/h
Applicable materials: Suitable for crushing reinforced concrete, concrete secondary products, and brick-mixed structures that contain steel bars or iron wires.
Special-designed crushing chamber for high crushing ratio:
The special design of the crushing chamber greatly improves the throughput of the crusher, achieving a large feed particle size and high crushing ratio.
Laminated crushing design for better particle shape:
Utilizing the principle of laminated crushing, selective crushing of materials is achieved, significantly increasing the proportion of fine materials and cubic content of the product, while greatly reducing the presence of needle-like materials.
Automatic clearing function for high work efficiency:
Hydraulic protection and hydraulic clearing enable the crusher to lift and automatically discharge in case of iron or instantaneous stalling, making the operation more convenient and greatly reducing downtime.
Ease of maintenance for effective cost savings:
The scientifically designed structure ensures reliable operation, minimal wear on vulnerable parts, easy maintenance, and user-friendly operation. For example, the integrated structure of the horizontal axis and bearing box allows for simple disassembly and installation without dismantling the crusher. The oil tank has a simple structure with fewer pipelines, resulting in fewer malfunctions.
|
Model |
Maximum feed size |
Post-crushing particle size(mm) | Production capacity(t/h) | Power(kW) |
| Thickness × Width × Length(mm) | ||||
| 2PGC90120 | 200x500x800 | 50-150 | 60-150 | 59-75 |
| 2PGC90160 | 300x700x1000 | 50-150 | 80-200 | 75-92 |
| 2PGC90200 | 400x1200x1500 | 50-150 | 100-250 | 92-120 |
