Mesh Size：30-50 （1-10）[mm]
Max. Feed Size: 50 (mm)
Max. Feed Temqerature: 50 °C
Application Fields: domestic and overseas steel plant
Applied Material: separate slag and steel, remove the bounding residue on the small casting pieces
This series of product is mainly used in autogenously grinding and separating slag and steel. It also can be used in foundry works to remove the bonding residue on the small casting pieces’ surface, etc.
1.Low installed power of equipment for energy saving, simplestructure for easy installation.
2.Instead of medium, this machine depends on the strike between materials themselves to realize the seperation.
3.Unique tube struture ensures small diacharge granuality and thus high productivity.
The grinder uses the materials to be grinded as the media, through mutually impacting and grinding to realize crushing.
| Model | Drum Size(mm) | Drum Speed(r/min) | Max. Feed Size（mm) | Max. Feed Temperature（mm) | Screen Size(mm) | Drum Gradient(°) | Power(kw) | Capacity(t/h) | Weight(kg) | |
| Diameter | Length | |||||||||
| ZM2540 | 2500 | 4000 | 17-24 | 300(40) | 50 | 30-50(1-10) | 0-2 | 110-132 | 17-25 | 46594 |
| ZM2560 | 2500 | 6000 | 17-24 | 300(40) | 50 | 30-50(1-10) | 0-2 | 160-200 | 20-30 | 70703 |
| ZM3040 | 3000 | 4000 | 17-20 | 300(50) | 50 | 30-50(1-10) | 0-2 | 160-220 | 25-35 | 67957 |
| ZM3060 | 3000 | 6000 | 17-20 | 300(50) | 50 | 30-50(1-10) | 0-2 | 250-280 | 30-40 | 87327 |

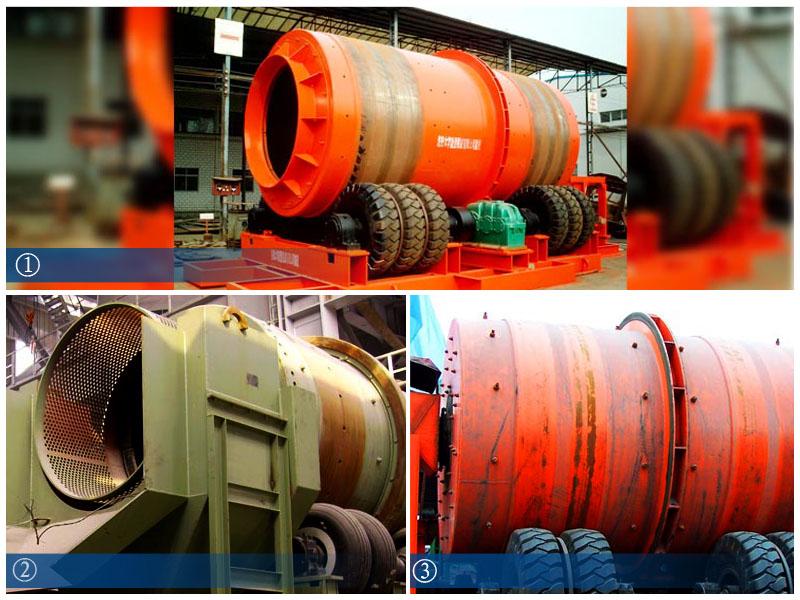

①ZM Autogenous Grinder Case in Jiangxi Province
②ZM Autogenous Grinder Case in Taiyuan Iron and Steel Co.
③ZM Autogenous Grinder Case in Guangxi Province
