Crushing Ability: primary crushing, secondary crushing, fine crushing
Granularity: 60 – 304 mm
Application Fields: highway, high speed railway, mining, construction, metallurgy
Applied Material: various kinds of rock and ore, bituminous concrete.

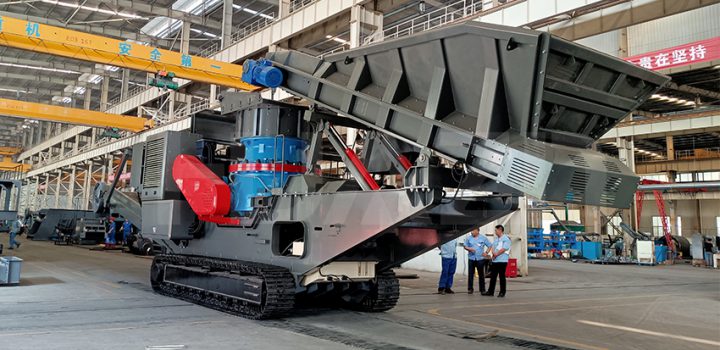

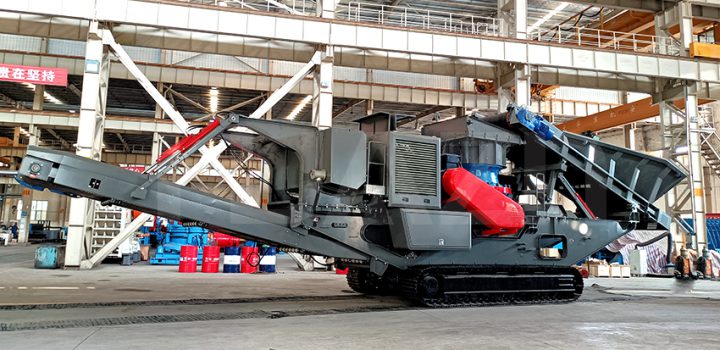

1. Equipped with a cone crusher which has excellent performance, it is suitable for crushing in the secondary and tertiary stages.
2. It is easy to be transported directly between different working sites.
3. It boasts reasonable configuration, a smooth technical process, high production efficiency, and good product shape.
4. It can be utilized jointly with other mobile crushing plants and mobile screening plants.
| Equipment Model | CMC200GS | CMC200G | CMC300GS | CMC300G | CMC300H | ||
| Feed Hopper | Feed Capacity(t/h) | 150-390 | 150-390 | 150-390 | 150-390 | 150-390 | |
| Feed Hopper Volume(m³) | 6.3 | 6.3 | 6.3 | 6.3 | 6.3 | ||
| Feed Belt Conveyor | Model(W mm * L mm) | B=1200 L=6100 | B=1200 L=6100 | B=1200 L=6100 | B=1200 L=6100 | B=1200 L=6100 | |
| Feed Height(mm) | 3730 | 3730 | 3730 | 3730 | 3730 | ||
| Power(kW) | 18.5 | 18.5 | 18.5 | 18.5 | 18.5 | ||
| Crushing Equipment | Cone Crusher | GPY200S | GPY200 | GPY300S | GPY300 | HPY300 | |
| Feed Opening Width(mm) | 330 | 70-210 | 380 | 60-260 | 107-233 | ||
| Max Feed Size(mm) | 265 | 60-165 | 304 | 50-210 | 85-185 | ||
| Discharge Size(mm) | 35-45 | 15-25 | 40-45 | 10-30 | 6-45 | ||
| Capacity(t/h) | 225-345 | 135-215 | 440-520 | 140-345 | 75-430 | ||
| Power(kW) | 160 | 160 | 250 | 250 | 220 | ||
| Main Belt Conveyor | (W mm * L mm * Power kW) | 1000 * 130000 * 15 | 1000 * 130000 * 15 | 1000 * 130000 * 15 | 1000 * 130000 * 15 | 1000 * 130000 * 15 | |
| Discharge Belt Conveyor | (W mm * L mm * Power kW) | 1200 * 6400 * 11 | 1200 * 6400 * 11 | 1200 * 6400 * 11 | 1200 * 6400 * 11 | 1200 * 6400 * 11 | |
| Transit Belt Conveyor | (W mm * L mm * Power kW) | 500 * 2650 * 4 | 500 * 2650 * 4 | 500 * 2650 * 4 | 500 * 2650 * 4 | 500 * 2650 * 4 | |
| Material Return Belt Conveyor | (W mm * L mm * Power kW) | 500 * 9000 * 5.5 | 500 * 9000 * 5.5 | 500 * 9000 * 5.5 | 500 * 9000 * 5.5 | 500 * 9000 * 5.5 | |
| Screen | (W mm * L mm * Power kW) | 1500 * 3600 * 7.4 | 1500 * 3600 * 7.4 | 1500 * 3600 * 7.4 | 1500 * 3600 * 7.4 | 1500 * 3600 * 7.4 | |
| Self-Dumping Magnetic Separator | Model * Power(kW) | RCYQ 1000 * 2.2 | RCYQ 1000 * 2.2 | RCYQ 1000 * 2.2 | RCYQ 1000 * 2.2 | RCYQ 1000 * 2.2 | |
| Track Chassis | Walking Mode | Track-Mounted | Track-Mounted | Track-Mounted | Track-Mounted | Track-Mounted | |
| Walking Speed(km/h) | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | ||
| Max Climbing Angle | 20° | 20° | 20° | 20° | 20° | ||
| Integrated Machine | Driving Mode(Optional as requested) | Hydraulic Driving / Grid Power Driving | Hydraulic Driving / Grid Power Driving | Hydraulic Driving / Grid Power Driving | Hydraulic Driving / Grid Power Driving | Hydraulic Driving / Grid Power Driving | |
| Omni-Hydraulic Driving | Omni-Hydraulic Driving | Omni-Hydraulic Driving | Omni-Hydraulic Driving | Omni-Hydraulic Driving | |||
| Engine | Model | CUMMINS | CUMMINS | CUMMINS | CUMMINS | CUMMINS | |
| Rated Power(kW) | 200-500 | 200-500 | 200-500 | 200-500 | 200-500 | ||
| Rated Rotation Speed(r/min) | 1800 | 1800 | 1800 | 1800 | 1800 | ||
| Total Weight(kg) | 45100/53700 | 43295/51795 | 54290/63890 | 52190/61000 | 53200/62700 | ||
|
Transport Dimensions: L * W * H(mm) |
17150 * 3119 * 3800 | 17150 * 3119 * 3800 | 17150 * 3119 * 3800 | 17150 * 3119 * 3800 | 17150 * 3119 * 3800 | ||
|
Working Dimensions: L * W * H(mm) |
18130 * 3560 * 4965 | 18130 * 3560 * 4965 | 18940 * 3560 * 4706 | 18940 * 3560 * 4706 | 18940 * 3560 * 4706 | ||
