Crushing Ability: primary crushing, secondary crushing, fine crushing
Granularity: 265 – 304 mm
Application Fields: highway, high speed railway, mining, construction, metallurgy
Applied Material: various kinds of rock and ore, bituminous concrete.
1. It can be utilized jointly with other mobile crushing plants and mobile screening plants.
2. The hydraulic opening and closing devices (Standard) or the specially used lifting tools (Optional) for replacement of blow bars, can provide flexible application and operation convenience.
3. The unique three-cavity vortex structure makes feed size larger, capacity larger and product shape better.
4. The standard modular cavity body lining plates, and the tooth-shaped impact plates are interchangeable, with a higher utilization rate and a longer service life.

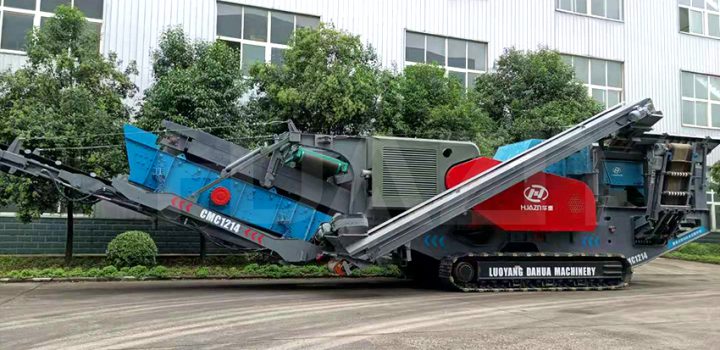

| Equipment Model | CMC1310 | CMC1214 | ||
| Feed Hopper | Feed Capacity(t/h) | 150-300 | 150-300 | |
| Feed Hopper Volume(m³) | 4.5 | 4.5 | ||
| Feed Equipment | Model(Width mm * Length mm) | ZSW 400 * 110 | ZSW 400 * 110 | |
| Feed Height(mm) | 4010 | 4010 | ||
| Power(kW) | 15 | 15 | ||
| Crushing Equipment | Impact Crusher | PFY1310 | PFY1214 | |
| Feed Opening Width(mm) | 1000 | 1450 | ||
| Max Feed Size(mm) | 265 | 304 | ||
| Discharge Size(mm) | 30-45 | 35-45 | ||
| Capacity(t/h) | 165-200 | 220-260/300 | ||
| Power(kW) | 160 | 220/250 | ||
| Main Belt Conveyor | Model(W mm * L mm * Power kW) | 1000 * 8100 * 11 | 1000 * 8100 * 11 | |
| Discharge Belt Conveyor | Model(W mm * L mm * Power kW) | 1200 * 6400 * 11 | 1200 * 6400 * 11 | |
| Transit Belt Conveyor | Model(W mm * L mm * Power kW) | 500 * 2650 * 4 | 500 * 2650 * 4 | |
| Material Return Belt Conveyor | Model(W mm * L mm * Power kW) | 500 * 8700 * 5.5 | 500 * 8700 * 5.5 | |
| Soil Removal Side Belt Conveyor | Model(W mm * L mm * Power kW) | 650 * 4380 * 4 | 650 * 4380 * 4 | |
| Vibrating Screen | Model(W mm * L mm * Power kW) | 1500 * 3600 * 7.4 | 1500 * 3600 * 7.4 | |
| Self-Dumping Magnetic Separator | Model * Power(kW) | RCYQ1000 * 2.2 | RCYQ1000 * 2.2 | |
| Track Chassis | Walking Mode | Track-Mounted | Track- Mounted | |
| Walking Speed(km/h) | 0.8 | 0.8 | ||
| Max Climbing Angle | 20° | 20° | ||
| Integrated Machine | Driving Mode(Optional as requested) | Hydraulic Driving / Grid Power Driving | Hydraulic Driving / Grid Power Driving | |
| Omni-Hydraulic Driving | Omni-Hydraulic Driving | |||
| Engine | Model | CUMMINS | CUMMINS | |
| Power(kW) | 200-500 | 200-500 | ||
| Rotation Speed(r/min) | 1900 | 1900 | ||
| Total Weight(kg) | 45100/53700 | 43295/51795 | ||
| Transport Dimensions: L * W * H(mm) | 17150 * 3119 * 3800 | 17150 * 3119 * 3800 | ||
| Working Dimensions: L * W * H(mm) | 18130 * 3560 * 4965 | 18130 * 3560 * 4965 | ||
