Crushing Ability: primary crushing, secondary crushing, fine crushing
Granularity: 0-80 mm
Application Fields: highway, high speed railway, mining, construction, metallurgy
Applied Material: various kinds of rock and ore, bituminous concrete.
1. Integrated installing form of equipments lowers material and time consumption.
2. The compact spatial arrangement of all equipments raises the flexibility of construction site.
3. The direct crushing of materials in site saves from many intermedium which greatly reduces cost on transportation.
4. Well adapted to specific conditions and quite flexible for allocation: independent or combined style operation.
5. Integrated PLC control system, equipped with remote low-voltage accessories, the control room day and night monitoring operation, 1-3 people can control the whole sand and stone yard..
| Basic Configuration | YD60 | YD-120 | YD-150 | YD-200 | YD-300 | YD-500 | ||
| Granuality（mm） | 0-40 | |||||||
| Capacity（t/h） | 60-80 | 80-120 | 120-150 | 150-200 | 200-350 | 300-500 | ||
| Primary Crushing | Feeder | ZSW300×85 | ZSW380×95 | ZSW420×110 | ZSW450×120 | ZSW500×130 | ZSW500×130 | |

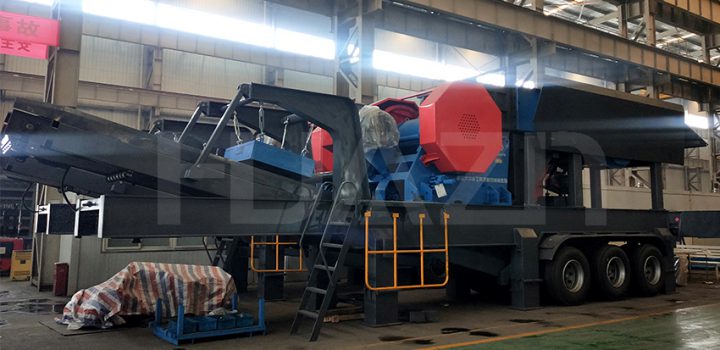

| Primary Crusher | JC80 | JC96 | JC106 | JC116 | JC126 | JC130 | ||
| Secondary Crushing | Vibrating Screen | 3YA1545 | 3YKR1860 | 3YKR2160 | 3YKR2460 | 3YKR2475 | 3YKR3060 | |

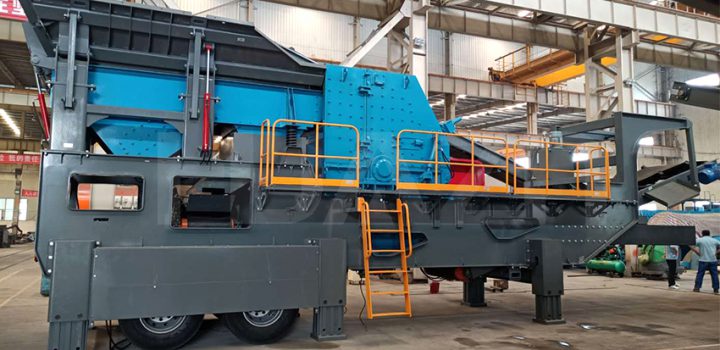

| Secondary Crusher | medium hard | PFQ1110 | PFQ1310 | PFQ1313 | PFQ1315 | PFQ1320 | PFQ1520 | |

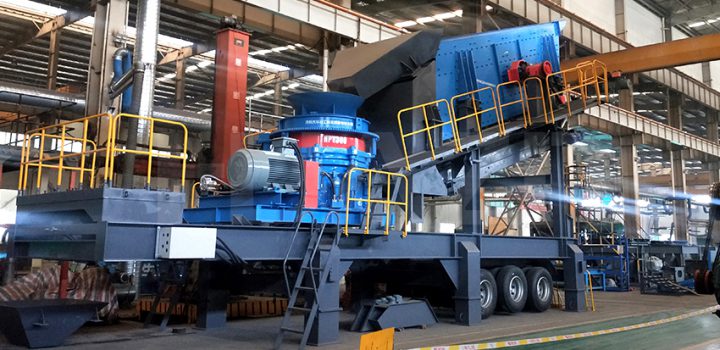

| special hard | GPY100-MF | GPY100-EC | GPY100S | GPY200S | GPY200S | GPY300S | ||
| Fine Crushing | Vibrating Screen | 3YA1536 | 3YKR1860 | 3YKR2160 | 3YKR2460 | 3YKR2475 | 3YKR2475 | |
| Sand Maker | PLS-700 | PLS-850 | PLS-850 | PLS-1000 | PLS-1200 | PLS-1200 | ||
| Auxiliary Equipment | conveyor, hydraulic leg, de-ironing separator, electrical apparatus control system, etc. | |||||||
