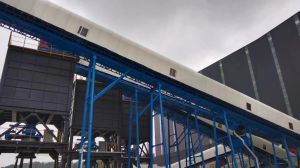

The TD75 general fixed belt conveyor (abbreviated as TD75) is widely used in sectors such as metallurgy, coal, transportation, building materials, mining, chemical industry, ports, and construction waste treatment. It is known for its advantages of high conveying capacity, simple structure, easy maintenance, low cost, and strong universality. It is used for conveying bulk materials or unit items. It can be arranged in a horizontal or inclined form according to process requirements.
The TD75 general fixed belt conveyor is suitable for material temperatures below 50°C and ambient temperatures between +40°C and -25°C. With appropriate protective measures, it can also be used in special environments with requirements such as explosion-proof, waterproof, corrosion resistance, heat resistance, and cold resistance.
Application fields: Metallurgy, coal, transportation, building materials, mining, chemical industry, ports, construction waste treatment.
Applicable materials: Conveying bulk materials or unit items.
The stacking density of the materials conveyed by TD75 general fixed belt conveyor is below 2.5t/m³.
This series can be divided into six specifications based on belt width: 500, 650, 800, 1000, 1200, and 1400mm.
It can be categorized into eight different belt speeds: 0.8, 1.0, 1.25, 1.6, 2.0, 2.5, 3.15, and 4.0m/s.
The conveying capacity in the table is calculated based on the conditions of material stacking density of 1t/m³, conveyor inclination angle of 0° to 7°, and material running stack angle of 30°.
| Form of carrying idlers |
Belt speed （m/s） |
Belt width(mm) | |||||
| 500 | 650 | 800 | 1000 | 1200 | 1400 | ||
| Conveying capacity(t/h) | |||||||
| Trough idlers | 0.8 | 78 | 131 | ||||
| 1.0 | 97 | 164 | 278 | 435 | 655 | 891 | |
| 1.25 | 122 | 206 | 348 | 544 | 819 | 1115 | |
| 1.6 | 156 | 264 | 445 | 696 | 1048 | 1427 | |
| 2.0 | 191 | 323 | 546 | 853 | 1284 | 1748 | |
| 2.5 |
232 |
391 | 661 | 1033 |
1556 |
2118 | |
| 3.15 | 824 | 1233 | 1858 | 2528 | |||
| 4.0 | 2022 | 2996 | |||||
| Parallel idlers | 0.8 | 41 | 67 | 118 | |||
| 1.0 | 52 | 88 | 147 | 230 | 345 | 469 | |
| 1.25 | 66 | 110 | 184 | 288 | 432 | 588 | |
| 1.6 | 84 | 142 | 236 | 368 | 558 | 753 | |
| 2.0 | 103 | 174 | 289 | 451 | 677 | 922 | |
| 2.5 | 125 | 211 | 350 | 546 | 821 | 1117 | |
