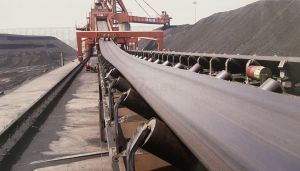

The DTII, DTII (A) series fixed belt conveyors are currently domestically unified designed general-purpose products. Their main parameters and performance comply with ISO international standards. They are widely used in industries such as metallurgy, mining, ports, power, building materials, chemicals, oil, and construction waste treatment. They can be used as single units or combined into a transportation system to convey various bulk materials and assembled items with a bulk density of 0.5 to 2.5.5t/m³. This series of conveyors can meet the requirements of horizontal and inclined conveying and can be configured with combinations of straight sections, convex curve sections, and concave curve sections. The maximum size of the materials allowed to be conveyed depends on the belt width, belt speed, trough angle, and inclination angle, with different belt widths suitable for different maximum material sizes.
Maximum particle size applicable to various belt widths. (Unit: mm)
| Belt Width | 500 | 650 | 800 | 1000 | 1200 | 1400 | 1600 | 1800 | 2000 | 2200 | 2400 |
|
Max. block size |
100 | 150 | 200 | 300 | 350 | 350 | 350 | 350 | 350 | 350 | 350 |
The speed range of this series is 0.8 to 6.5 m/s, with commonly used values ranging from 0.8 to 5.0 m/s.
|
Belt width B (mm) |
Belt speed υ (m/s) | |||||||||
| 0.8 | 1.0 | 1.25 | 1.6 | 2.0 | 2.5 | 3.15 | 4.0 | 5.0 | 6.3 | |
| Conveying capacity Q(㎥/h) | ||||||||||
| 500 | 69 | 87 | 108 | 139 | 174 | 217 | ||||
| 650 | 127 | 159 | 198 | 254 | 318 | 397 | ||||
| 800 | 199 | 248 | 310 | 398 | 497 | 621 | 783 | |||
| 1000 | 324 | 405 | 507 | 649 | 811 | 1014 | 1278 | 1622 | ||
| 1200 | 594 | 742 | 951 | 1188 | 1485 | 1872 | 2377 | 2971 | ||
| 1400 | 825 | 1032 | 1321 | 1651 | 2064 | 2601 | 3303 | 4129 | ||
| 1600 | 2185 | 2732 | 3442 | 4371 | 5464 | |||||
| 1800 | 2795 | 3493 | 4402 | 5590 | 6987 | 9083 | ||||
| 2000 | 3467 | 4334 | 5461 | 6935 | 8668 | 11277 | ||||
| 2200 | 6841 | 8687 | 10859 | 14120 | ||||||
| 2400 | 8286 | 10522 | 13152 | 17104 | ||||||
